Sherwood Park Door access control intelligent bluetooth control systems

Access Control - Intelligent Bluetooth Controllers

Manage all of your doors using the powerful, versatile, and cost-effective ACCESS series devices. The only line of "jack-of-all-trades" intelligent opening controllers on the market. Compact design, versatile feature set, and high power output allow you to add Bluetooth locking to virtually any space. Transform your traditional keyed environment into a keyless solution.

Use the powerful ‘brain’ of the ACCESS Series to manage electronic door opening solutions from a single installation to multiple thousand-unit installations! Now you can control electro-mechanical locks, servo & DC motors, drop bolts, electric strikes and more with either the ACCESS or ACCESS-Mini.

Custom design your own solutions, from input power to emergency power to the patented “Quick-Click” feature, you decide how to leverage the ACCESS Series to run your drop bolt, electric strike, door opener, magnetic lock, servo motor or any electro-mechanical device that works off of 12V and draws up to 3A of power! The ACCESS Series also allows you to connect any standard sensor (magnetic, mechanical, etc.) to the system and “Sentinel” will automatically start tracking the status of that sensor as well!

Save tremendous costs by locating the “brain” right next to each door. No more paying costly installation fees to run cable and install servers, power and signaling cables to a central panel!


The ACCESS series includes two versions of intelligent opening controller, ACCESS and ACCESS-Mini. Both versions retain the powerful ability to manage a variety of electro-mechanical locks and come with essential, standard abilities and components including the TFB with patented “Quick-Click”, App and “Sentinel”, to offer a comprehensive solution for keyless enterprise security.

Both ACCESS and ACCESS-Mini have been designed to respond to the challenges faced by an installer. While ACCESS is designed to maximize the installer’s ability to configure per custom needs, the ACCESS-Mini is designed with a minimal size for installers working with extremely limited spaces.

With ACCESS or ACCESS-Mini, Control Virtually Any Type of Door, Including:

  • Electromechanical Locks
  • Electro-magnetic Locks
  • Door Strikes
  • Drop Bolts
  • Servo Motors

Access Control System benefits:

  • Independent primary power input accepts 6V-24V DC from either battery or hard-line power.
  • Independent secondary power input also accepts 6V-24V DC for primary power outage situations.
  • Built-in voltage booster bumps incoming power up to 12V and can also pass higher voltage (up to 24V) straight through.
  • Sensor support of mechanical or magnetic switches allowing for monitoring and reporting of door activity through Sentinel.
  • Quick-Click feature opens lock without phone or FOB.
  • Manual unlock button triggers an immediate unlock event.
  • Compatible with compact TFB (Tri-Function Box) with wake and patented Quick-Click button which opens lock without phone or FOB, LED visual feedback and emergency 9V battery terminals.

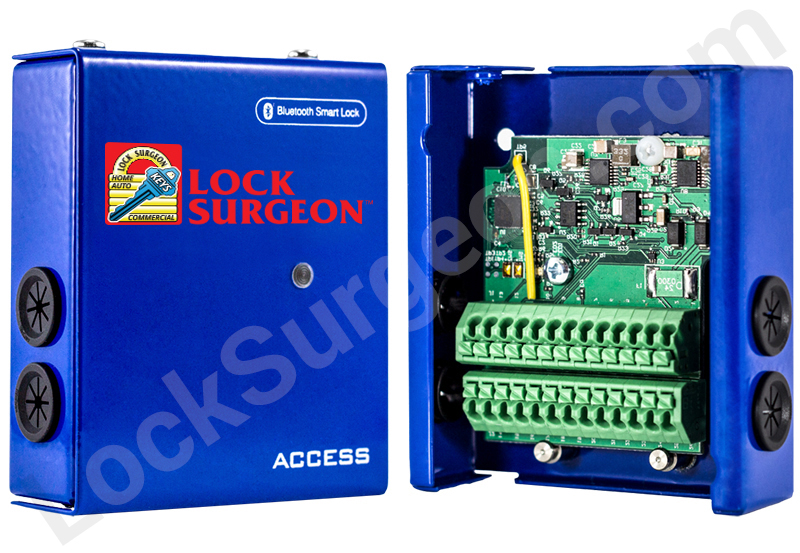

Access Control Offering the greatest user configuration:

Manages any electro-mechanical 12V–24V lock drawing up to 3 Amps of power including: servo or stepper motors, standard DC motors, drop bolts, electric strikes, solenoids, and electro-magnetic door locks.

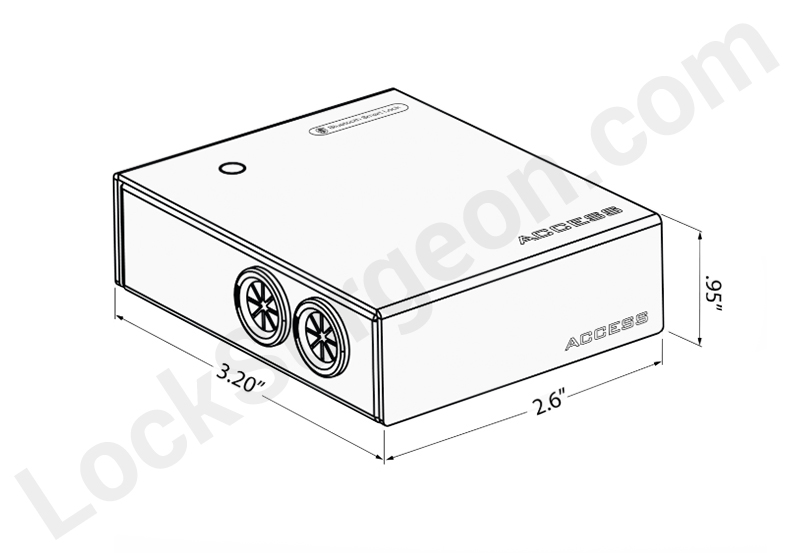

Sherwood Park Access control panel with 3amp power servo motor or stepper motor control drop bolts electric strike Sherwood Park Outline drawing diagram for the Access control unit

Dimensions: 2.60" x 3.20" x 0.95"

  • Uses two 13-pin terminal connectors for input/output
  • App configurable with variable security levels
  • Two input sensors.

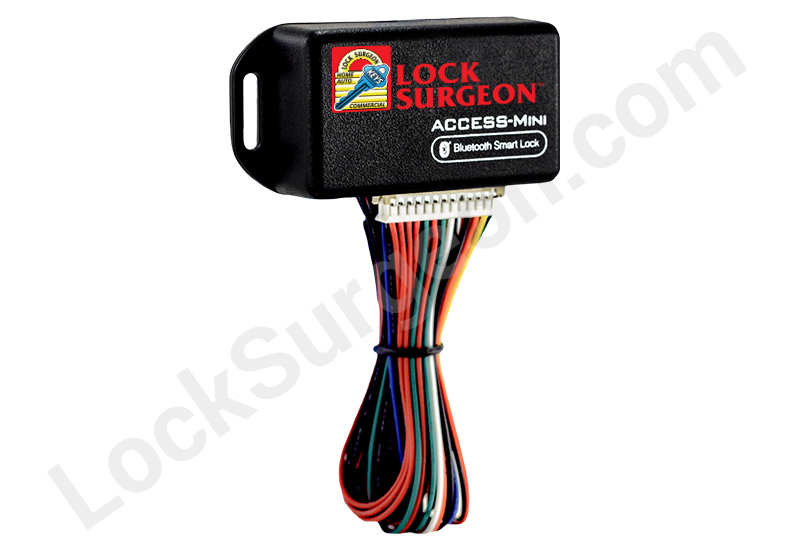

Access-Mini - Specifically designed to minimize footprint:

Manages any electro-mechanical 12V–24V lock drawing up to 1.5 Amps of power including: servo or stepper motors, standard DC motors, drop bolts, electric strikes, solenoids, electro-magnetic door locks.

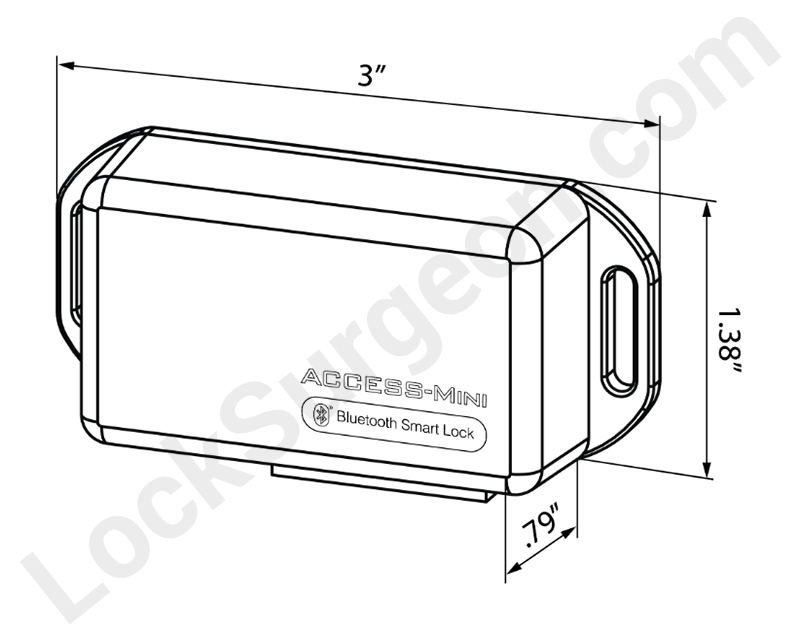

Sherwood Park Access-mini control unit designed to minimize footprint manages electro-mechanical door features Sherwood Park Outline diagram for access-mini control unit

Dimensions: 3.00" x 1.38" x 0.79"

  • 12” Long cable for 26-Pin JST connectivity to ACCESS-Mini included.
  • 1.5A Maximum power
  • Resettable fuses
  • App configurable with variable security levels
  • Two input sensors

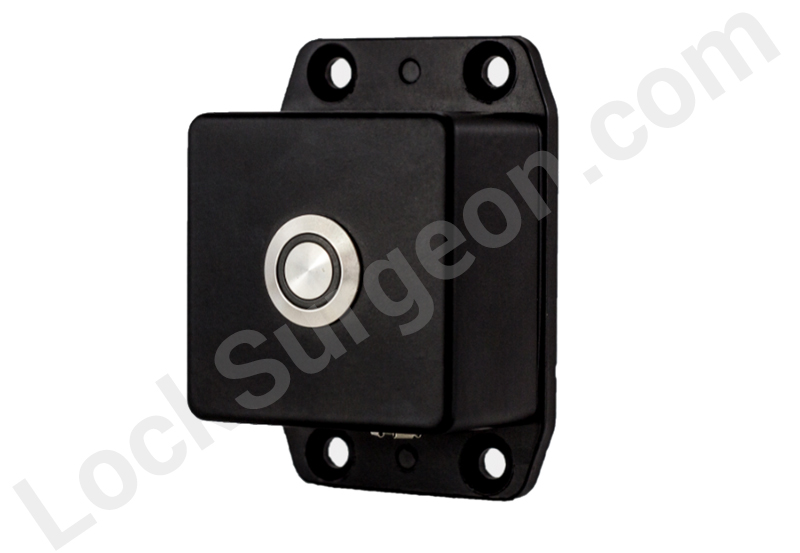

TFB Tri-function Box - Access Control with more benefits

Designed to support many of the important benefits of the ACCESS system. When combined with an ACCESS Series intelligent controller, the TFB allows you to fully leverage the system’s special features.

The TFB has a button that, when pressed, wakes up the ACCESS system. By going to sleep, any systems running on battery power will maximize the lifespan of the batteries. By pressing the button, the system will wake up and begin broadcasting its Bluetooth availability.

The button also serves as the interface for any emergency access or non-smartphone access. By pushing the button in a morse-code style, the ACCESS system will unlock when a proper code has been entered. ACCESS stores 99 unique, one-time use codes for use as the “Quick-Click” feature. The button also has a tri-color feedback LED system built in that offers visual cues to the user during the operation of the system.

9V Emergency power access ports are located at the bottom of the TFB. These weatherproof terminals can be used to connect a standard 9V battery should the hard-line or internal battery power of the ACCESS system fail. The 9V battery has sufficient power to not only operate the CPU, but also power the connected endpoint to unlock. Once unlocked, the user can enter the locked area and correct the failed power situation. One TFB can be connected to multiple ACCESS Series products.

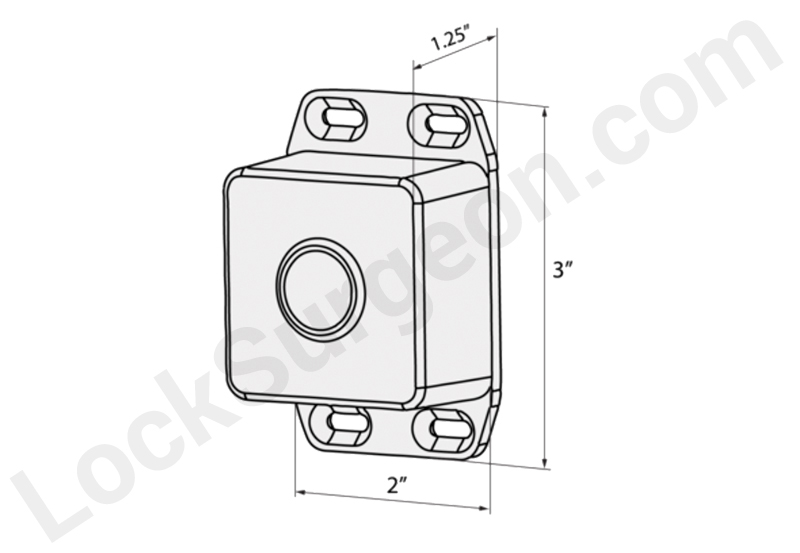

Sherwood Park TFB Tri-function Box control with more benefits for door access Sherwood Park Outline diagram for dimensions of the TFB tri-function box

Dimensions: Size: 2.00” x 3.00” x .1.25”

  • Easily attaches with 4 screws
  • Button activates the “Wake” feature of ACCESS and ACCESS-Mini as well as the patented “Quick-Click” feature
  • LED visual feedback
  • Emergency 9V battery terminals

Access Series Endpoints

A necessary compliment to your ACCESS Series intelligent controllers. Because the ACCESS Series intelligent controllers work with such a wide variety of electro-mechanical locks, it would be difficult to list them all. From cabinet door locks to server cabinet door locks to glass door locks, the ACCESS Series can control them all.

The ACCESS Series works with 12VDC controlled locks that draw up to 3A of current during operation. The ACCESS Series can work either as Fail-Open (FO) or Fail-Close (FC) simply by a switch of parameters in the Sentinel enterprise management system.

  • Glass Door Locks
  • Swing Locks
  • Solenoids
  • Drop Bolts
  • Cabinet Door Locks
